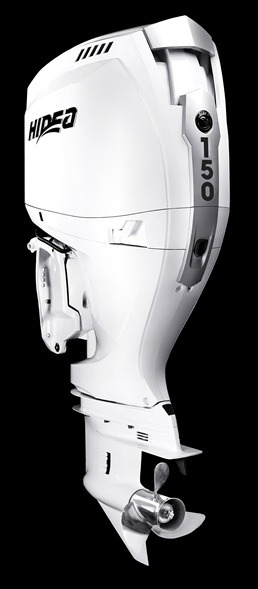

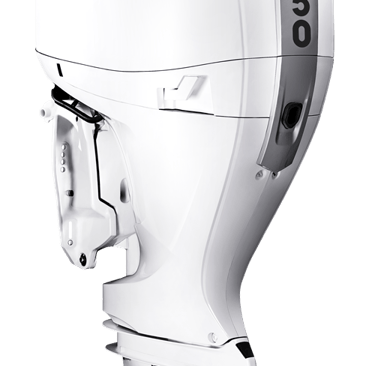

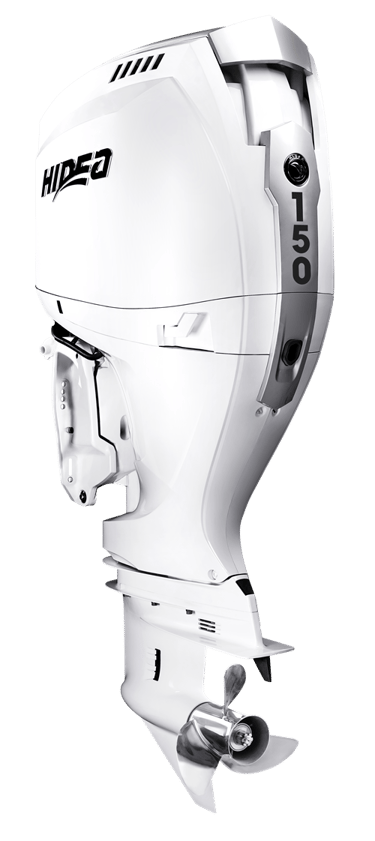

150 horsepower EFI

HDF150 EFI - advanced technology

In addition to the usual great features and finishes found on the 4-stroke models, the 4-cylinder 150HP EFI has the following benefits.

Electronic Fuel Injection (EFI) system

The Programmed Electronic Fuel Injection (EFI) utilises the DELPHI ECU system that accurately controls ignition timing during start up, providing optimum overall operation, with instant throttle response and fuel efficient performance.

Better Performance

Employing independent pencil-coil (COP) ignition system, providing more efficient use of ignition energy, better combustion and more reliable overall operation.

Digital Control

Fly-by-wire digital control means quicker installation, as well as the ability to manage multiple motors at the same time all working in unison.

More Quiet

HDEF150 EFI features quiet operation due to being a powerful 4-cylinder 4-stroke motor combined with the Reverse Exhaust Relief system, redirecting exhaust gas through propeller in the water.

Quick Starts

The Electronic Fuel Injection (EFI) system, automatically adjusts the air-fuel mixture for quick, easy starting and warming-up. By utilising Variable Valve Timing (VVT-i) fine adjustments are made to air intake timing based on the engine's operating condition, providing leaner burning of fuel and thus fuel efficiency.

Engine Alert System

Engine Alert System, it constantly monitors vital engine functions and reduces the likelihood of damage by alerting the driver of overheating, low oil pressure and other critical engine functions.

Power Thrust Design

The HDEF150 EFI are using a higher gear ratio to provide these engines with extraordinary forward and reverse thrust for improved maneuverability and performance.

Cruising Fuel Economy

The EFI system automatically adjusts the air-fuel mix according to speed and load, this maximizes power throughout the RPM range will save up to 20% less fuel than other comparably sized outboards in the cruise speed.

NMEA2000 compatible

Plug and play NMEA2000 compatibility, display engine data to NMEA2000 device such as sounder screen.

HDF150 EFI 4-Stroke Benefits:

◇ Actual six layers of paint, world-class anti-corrosion treatment

◇ Using the US brand PPG paint, more resilient exterior finish

◇ Sleek design

◇ Advanced cross-flow induction for smooth operation

◇ Larger capacity oil reservoir for optimum lubrication

◇ Tuned intake system for crisp takeoffs

◇ CE approved

High Performance and Easy Operation:

◇ Digital independent pencil-coil ignition for easier engine starting, quicker throttle response and smoother trolling

◇ Large alternator and rectifier for superior battery charging

◇ Shallow water drive

◇ Optional hydraulic steering system

Fundamentals for User Convenience and Reliability:

◇ Through-the-prop exhaust for a quieter ride

◇ Thermostatically controlled cooling system for consistent engine temperature

◇ Stainless steel water pump housing liner for outstanding durability

◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion

◇ Zinc coating on internal water passages for superior corrosion resistance

◇ 24 litre fuel tank including fuel fittings and fuel line

◇ Stainless steel propeller

VVT-i technology

Digital Rigging Kits

Single binnacle digital control box c/w 7" touchscreen display and all components required for installation

SKU-08190676 RRP $3,993

Dual binnacle digital control box c/w 7" touchscreen display and all components required for installation

SKU-08190677 RRP $6,093

Forward Mechanical Control

HDEF150VEML-T RRP $20,862 HDEF150FEMX-T RRP $21,175

Counter Rotating

HDEF150FEML-LT RRP $ TBA HDEF150FEMX-LT RRP $ TBA

Forward Digital Control

HDEF150VEDL-T RRP $21,802 HDEF150FEDX-T RRP $22,116

Counter Rotating

HDEF150FEDL-LT RRP $ TBA HDEF150FEDX-LT RRP $ TBA

Forward digital control - see options for rigging kit including gauge (85mm multi-function or 7" colour touchscreen).

24L fuel tank standard included.

Counter rotating model available, call for price.

L - long shaft

X - extra long shaft

LT - counter rotating

Mechanical Rigging Kits

Single side-mount control box c/w 85mm round multi-function gauge, all required cables and components for installation

SKU-08190671 RRP $ 750

Single side-mount control box c/w 7" touchscreen, all required cables and components for installation

SKU-08190672 RRP $ 1,630

Single top-mount binnacle control box c/w 85mm round multi-function gauge, all required cables and components for installation

SKU-08190673 RRP $ 865

Dual binnacle control box c/w 7" touchscreen display and all components required for installation

SKU-08190675 RRP $2,807
