Hydraulic Tilt Plate

SKU: F60-2.5.60.001 RRP $1,272

c/w wiring loom, trim switch & 40A relay. Material: 6061 alu, Fixings: 316 stainless steel

Suitable for: 2.5 - 60hp outboards

Why buy a Heysea Hydra-lift Jacking Plate?

◇ High-quality heavy-duty aluminum construction

◇ 6001 and aero grade 7006, 316 stainless steel fixings

◇ Up to 3000kg lifting capacity, double that that offered by competitors

◇ Easy installation

◇ Best value on the market

◇ Suitable for all makes of outboard motors

Lightweight Hydraulic Tilt Plate

SKU: F90-100.105.001 RRP $2,179

c/w wiring loom, trim switch & 40A relay. Material: 6061 alu, Fixings: 316 stainless steel Lifting capacity: 170kgs, 4" setback, Lift travel: 6.3" (160mm), Weight: 18.5kgs

Suitable for: 10-90hp outboards

Under 100 horsepower models

Over 100 horsepower models

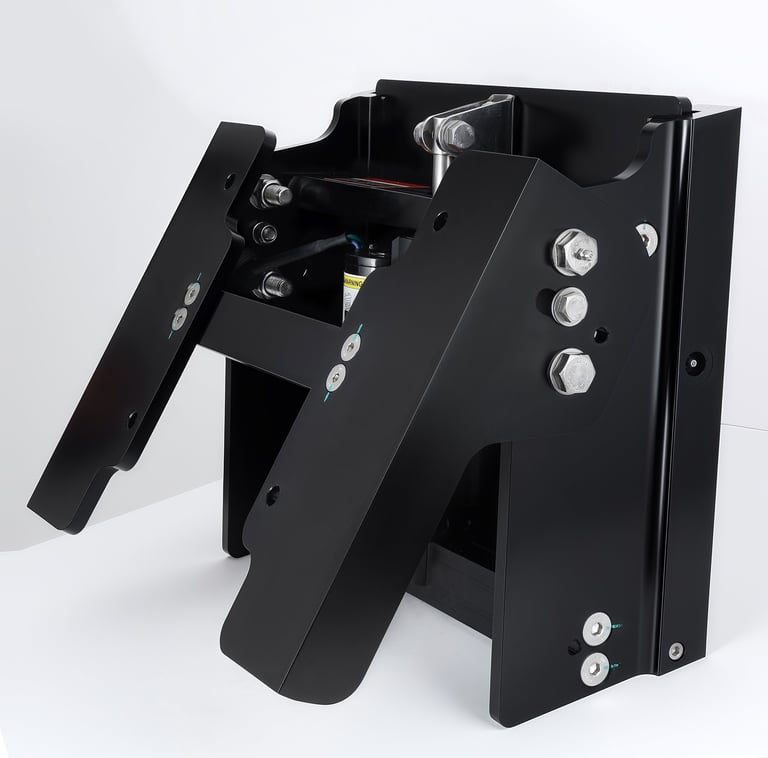

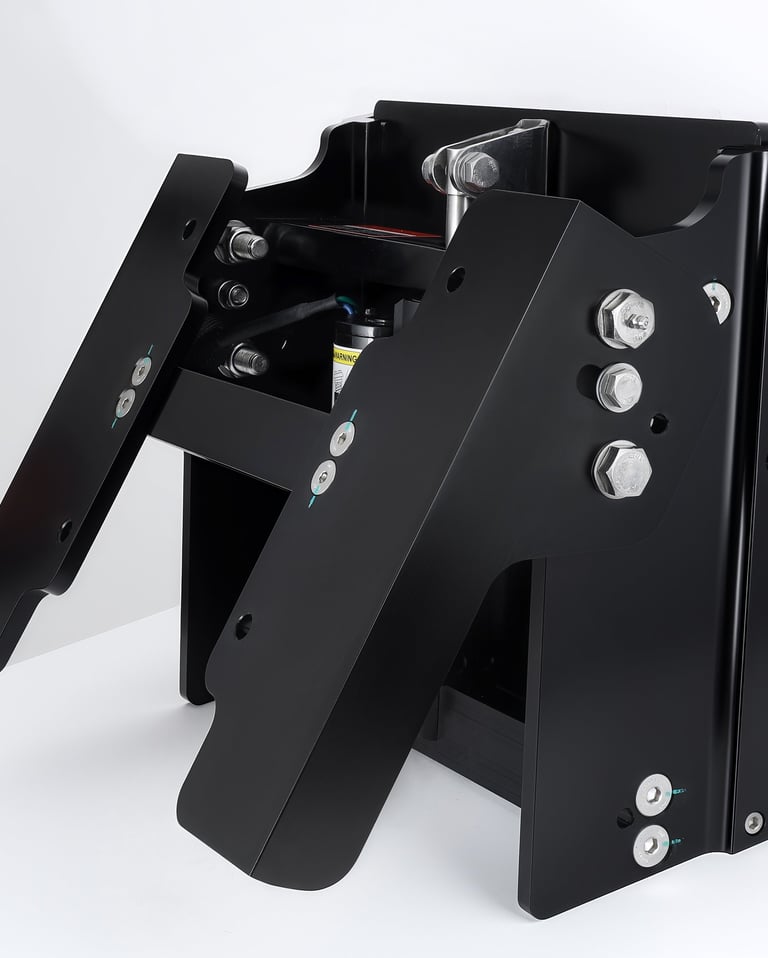

Hydraulic Kickback/Jacking Plate

SKU: F200-100.105.001 RRP $2,453

c/w wiring loom, trim switch & 40A relay. Material: 6061 alu, Fixings: 316 stainless steel Lifting capacity: 1500kgs Lift travel: 6.3" (160mm)

Suitable for: 10-200hp outboards

Hydraulic Jacking Plate 6" setback

SKU: F300-10.300.001 RRP $2,642

c/w wiring loom, trim switch & 40A relay. Material: 6061 alu, Fixings: 316 stainless steel Lifting capacity: 3000kgs Lift travel: 6.3" (160mm)

Suitable for: 90-200hp outboards

Hydraulic Jacking Plate 6" setback

SKU: F300-10.300.006 RRP $2,914

c/w wiring loom, trim switch & 40A relay. Material: 6061 alu, Fixings: 316 stainless steel Lifting capacity: 1500kgs Lift travel: 6.3" (160mm)

Suitable for: 100-300hp outboards

Hydraulic Jacking Plate 8" setback

SKU: F600-115.600.001.8 RRP $3,750

(c/w wiring loom, trim switch & 40A relay. Material: 7009 alu, Fixings: 316 stainless steel Lifting capacity: 3000kgs Lift travel: 6.3" (160mm)

Suitable for: 100-625hp outboards

Hydraulic Jacking Plate 6" setback

SKU: F600-115.600.001.6 RRP $3,750

c/w wiring loom, trim switch & 40A relay. Material: 7009 alu, Fixings: 316 stainless steel Lifting capacity: 3000kgs Lift travel: 6.3" (160mm)

Suitable for: 100-625hp outboards

Hydraulic Jacking Plate 8" setback

SKU: F300-10.300.008 RRP $2,914

c/w wiring loom, trim switch & 40A relay. Material: 6061 alu, Fixings: 316 stainless steel Lifting capacity: 1500kgs Lift travel: 6.3" (160mm)

Suitable for: 100-300hp outboards

Hydraulic Jacking Plate 6" setback

SKU: F600-115.600.001.6B RRP $3,618

c/w wiring loom, trim switch & 40A relay. Material: 7009 alu, Fixings: 316 stainless steel Lifting capacity: 3000kgs Lift travel: 6.3" (160mm)

Suitable for: 115-625hp outboards

Hydraulic Jacking Plate 8" setback

SKU: F600-115.600.001.8B RRP $3,896

(c/w wiring loom, trim switch & 40A relay. Material: 7009 alu, Fixings: 316 stainless steel Lifting capacity: 3000kgs Lift travel: 6.3" (160mm)

Suitable for: 115-625hp outboards

Smart Stick-Trim Gauge

SKU: HTSS-01 RRP $ 412

c/w wiring loom, gauge, smart stick and adhesive height guide. Suitable for all models of above jacking plates
