150 horsepower EFI

Forward Digital Control

HDEF175VEDL-T RRP $22,429 HDEF175FEDX-T RRP $22,743

Counter Rotating

HDEF175FEDL-LT RRP $ TBA

HDEF175FEDX-LT RRP $ TBA

Forward digital control - see options for rigging kit including 7" colour touchscreen.

24L fuel tank standard.

Counter rotating model available, call for price.

L - long shaft

X - extra long shaft

LT - counter rotating

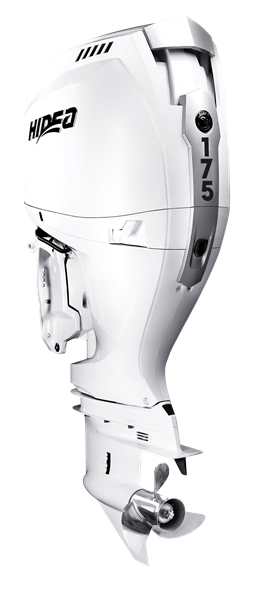

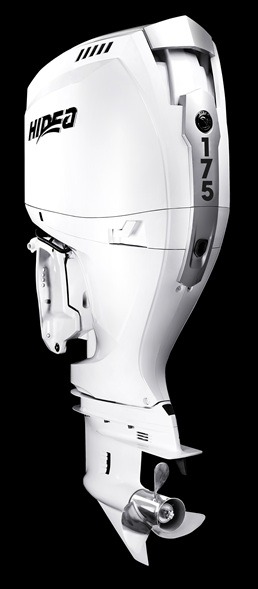

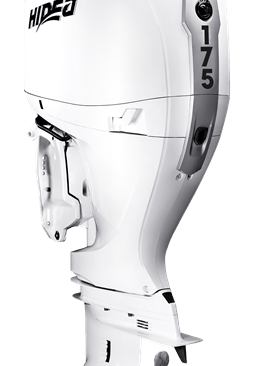

HDF175 EFI – EFI advanced technology

In addition to the usual great features and finishes found on the 4-stroke models, the 4-cylinder 175HP EFI has the following benefits.

Electronic Fuel Injection (EFI) system

The Programmed Electronic Fuel Injection (EFI) utilises the DELPHI ECU system that accurately controls ignition timing during start up, providing optimum overall operation, with instant throttle response and fuel efficient performance.

Better Performance

Employing independent pencil-coil (COP) ignition system, providing more efficient use of ignition energy, better combustion and more reliable overall operation.

Digital Control

Fly-by-wire digital control means quicker installation, as well as the ability to manage multiple motors at the same time all working in unison.

More Quiet

HDEF175 EFI features quiet operation due to being a powerful 4-cylinder 4-stroke motor combined with the Reverse Exhaust Relief system, redirecting exhaust gas through propeller in the water.

Quick Starts

The Electronic Fuel Injection (EFI) system, automatically adjusts the air-fuel mixture for quick, easy starting and warming-up. By utilising Variable Valve Timing (VVT-i) fine adjustments are made to air intake timing based on the engine's operating condition, providing leaner burning of fuel and thus fuel efficiency.

Engine Alert System

Engine Alert System, it constantly monitors vital engine functions and reduces the likelihood of damage by alerting the driver of overheating, low oil pressure and other critical engine functions.

Power Thrust Design

The HDEF175 EFI are using a higher gear ratio to provide these engines with extraordinary forward and reverse thrust for improved maneuverability and performance.

Cruising Fuel Economy

The EFI system automatically adjusts the air-fuel mix according to speed and load, this maximizes power throughout the RPM range will save up to 20% less fuel than other comparably sized outboards in the cruise speed.

NMEA2000 compatible

Plug and play NMEA2000 compatibility, display engine data to NMEA2000 device such as sounder screen.

HDF150 EFI 4-Stroke Benefits:

◇ Actual six layers of paint, good corrosion resistance.

◇ Using the US brand PPG paint, more beautiful exterior.

◇ Plus timer, maintenance more convenient.

◇ Sleek design

◇ Light and compact!

◇ Advanced cross-flow induction for smooth operation

◇ Larger capacity oil reservoir for optimum lubrication

◇ Tuned intake system for crisp takeoffs

◇ CE approved.

High Performance and Easy Operation:

◇ Digital independent pencil-coil ignition for easier engine starting, quicker throttle response and smoother trolling

◇ Large alternator and rectifier for superior battery charging

◇ Shallow water drive

◇ Optional hydraulic steering system

Fundamentals for User Convenience and Reliability:

◇ Through-the-prop exhaust for a quieter ride

◇ Thermostatically controlled cooling system for consistent engine temperature

◇ Stainless steel water pump housing liner for outstanding durability

◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion

◇ Zinc coating on internal water passages for superior corrosion resistance

◇ 24 litre fuel tank including fuel fittings and fuel line

◇ Stainless steel propeller

VVT-i technology

Digital Rigging Kits

Single binnacle digital control box c/w 7" touchscreen display and all components required for installation

SKU-08190676 RRP $3,993

Dual binnacle digital control box c/w 7" touchscreen display and all components required for installation

SKU-08190677 RRP $6,093
